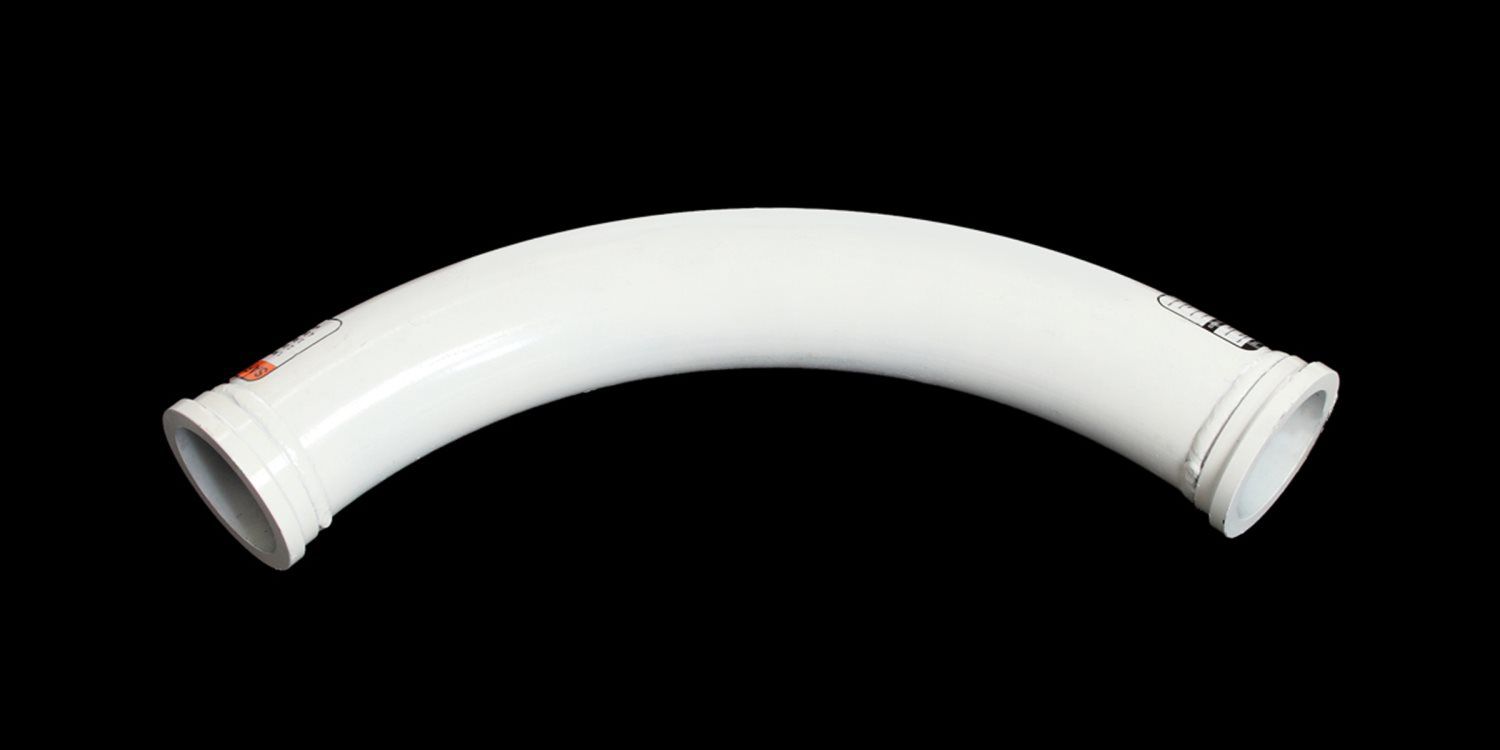

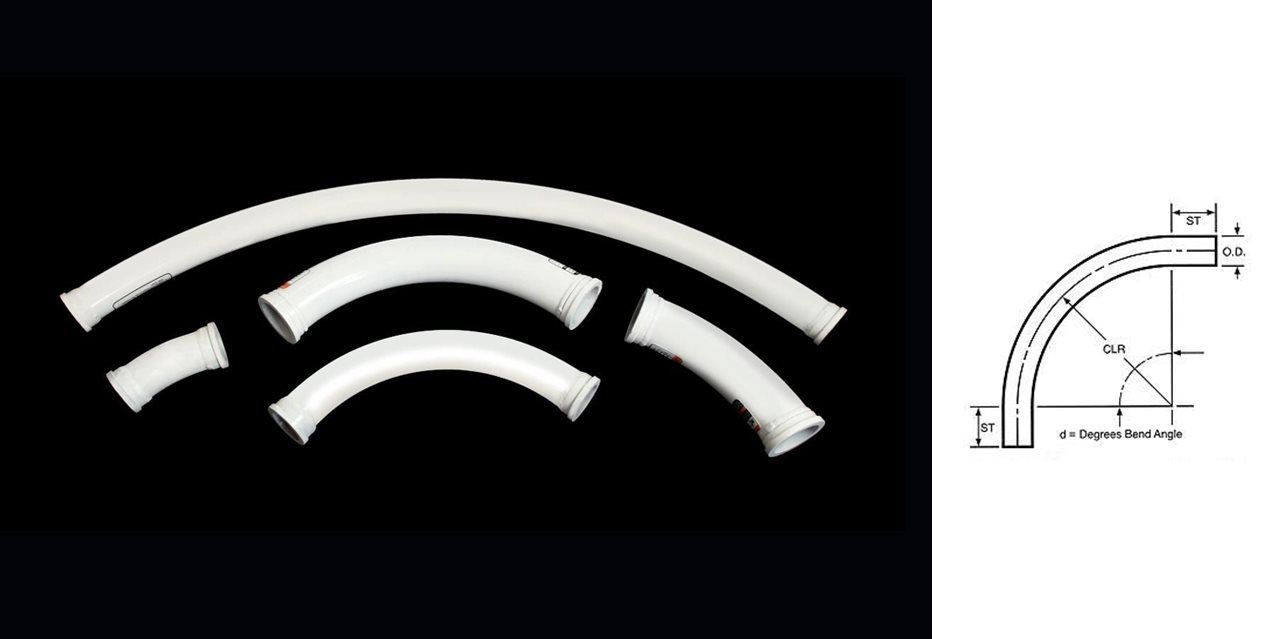

ELBOWS

45* DEGREE ELBOWS

PART NUMBER

PRODUCT DESCRIPTION

BD45R20CL13

2” - 45* ELBOW CL 13 RADIUS HD ENDS

BD45R20CL48

2” – 45* ELBOW CL 48 RADIUS HD ENDS

BD45R25CL16

2-1/2” – 45* ELBOW CL 16 RADIUS HD ENDS

BD45R25CL48

2-1/2” – 45* ELBOW CL 48 RADIUS HD ENDS

BD45R30CL16

3” – 45* ELBOW CL 16 RADIUS HD ENDS

BD45R30CL48

3” – 45* ELBOW CL 48 RADIUS HD ENDS

BD45R40CL18

4” – 45* ELBOW CL 18 RADIUS HD ENDS

BD45R40CL48

4” – 45* ELBOW CL 48 RADIUS HD ENDS

BD45R50CL18

5” – 45* ELBOW CL 18 RADIUS HD ENDS

BD45R50CL24

5” – 45* ELBOW CL 24 RADIUS HD ENDS

BD45R50CL48

5” – 45* ELBOW CL 48 RADIUS HD ENDS

90* DEGREE ELBOWS

PART NUMBER

PRODUCT DESCRIPTION

BD90R20CL16

2” – 90* ELBOW CL 16 RADIUS HD ENDS

BD90R20CL24

2” – 90* ELBOW CL 24 RADIUS HD ENDS

BD90R20CL48

2” – 90* ELBOW CL 48 RADIUS HD END

BD90R25CL16

2-1/2” – 90* ELBOW CL 16 RADIUS HD ENDS

BD90R25CL48

2-1/2” – 90* ELBOW CL 48 RADIUS HD ENDS

BD90R30CL6

3” – 90* ELBOW CL 6 RADIUS HD ENDS

BD90R30CL16

3” – 90* ELBOW CL 16 RADIUS HD ENDS

BD90R30CL48

3” – 90* ELBOW CL 48 RADIUS HD ENDS

BD90R40CL6

4” – 90* ELBOW CL 6 RADIUS HD ENDS

BD90R40CL18

4” – 90* ELBOW CL 18 RADIUS HD ENDS

BD90R40CL48

4” – 90* ELBOW CL 48 RADIUS HD ENDS

BD90R50CL7

5” – 90* ELBOW CL 7 RADIUS HD ENDS

BD90R50CL24

5” – 90* ELBOW CL 24 RADIUS HD ENDS

BD90R50CL48

5” – 90* ELBOW CL 48 RADIUS HD ENDS

REDUCING ELBOWS

PART NUMBER

PRODUCT DESCRIPTION

BD90R40R30

4” X 3” REDUCING 90* ELBOW HD ENDS

BD90R50R30

5” X 3” REDUCING 90* ELBOW HD ENDS

BD90R50R40

5” X 4” REDUCING 90* ELBOW HD ENDS
